Modular Incubator Chamber
MIC-101
Description
The Modular Incubator Chamber (MIC-101) is a compact and versatile tool designed as a cost-effective system for maintaining cell cultures under stable hypoxic (physioxic) or hyperoxic conditions. It offers a straightforward approach to controlling oxygen levels using its closed system, preventing multi-well plate edge evaporation, and tailoring gas concentrations to your specific requirements.
The MIC-101 incubator utilizes a surface-type seal where all portions of the O-ring are uniformly compressed by a glass reinforced polycarbonate retaining clamp for a reliable air-tight seal. The cylindrical walls and semi-spherical top and bottom provide minimum gas flow resistance and no inherent dead space during initial purging. The chambers have an integrated stacking feature for storage during or after experimentation. All units are molded from high quality polycarbonate and will not break, crack or cloud with extended use.
Cat. Number: MIC-101
$530 / unit
Order 2 or more: $480 / unit
ADD TO CARTOutside the US: International Distributors
Bundle and save!
View BundlesHow It Works
Simply place your tissue culture cells in the chamber, add a container with filtered water for humidity, attach a flow meter to the unit, flush for several minutes with the desired gas mixture, then seal the chamber and place in your 37˚C incubator. See the instruction sheet for detailed protocols.
Features
- Simple to Use.
- Trustworthy Airtight Sealing: Ensures a dependable and secure closure that reduces contamination.
- Eliminates Evaporation: Prevents multi-well plate “edge effect” evaporation.
- Effortless Cleaning: The seamless, crevice-free interior with rounded corners makes cleaning and decontamination a breeze.
- Minimizes Consumption of Expensive Tri-Gas Mix.
- Uniform Gas Distribution: The cylindrical chamber design guarantees consistent gas distribution.
- Increased Environmental Stability-Zero Lag Time: Once sealed, the MIC-101 maintains consistent gas levels for at least 72 hours, confidently offering extended experiment durations without environmental disturbance.
- Versatile Multipurpose Trays: Accommodates culture dishes, flasks, test tubes, and multi-well plates.
- Space-Efficient Stackable Design: Maximizes storage efficiency.
Read this Tech Note on the advantages of the MIC-101 over standard incubators.
Research Uses
- Tissue Culture
- Hypoxia/Hyperoxia
- Stem Cells
- IVF
- Malaria
- Tumor Biology
- Immunology
- Neuroscience
- Virology
- Transgenics
- [35S]-Met/Cys Containment
- Rheumatoid Arthritis
Product Images
Specifications
Dimensions:
- Outside dimensions: dia. 33cm (13 in.)
- Height 12 cm (4.9 in.).
- Inside diameter of trays: 26.7 cm (10.5 in).
- Clearance between trays: 2.3 cm. (0.9 in.)
Multi-purpose trays hold all types of labware:
- Multi-well plates
- Tissue culture dishes
- Tissue culture flasks
- Test tubes
Tissue Culture Labware Capacity:
- 100 35mm petri dishes
- 27 60mm petri dishes
- 12 100mm petri dishes
- 12 96-well plates
- 18 25-cm2 tissue culture flasks
Chamber and tray components are made of FDA approved clear high-test polycarbonate
Warranties and Disclaimers:
By purchasing Embrient products, you agree to the Terms & Conditions of sale. Embrient products are for research use only. Embrient warrants that all products will meet the specifications indicated on the individual Product DataSheet. This warranty lasts for 12 months from the date of receipt. Embrient products include directions for use/suggested applications. Any deviations by the customers to such usage will void any warranties. This warranty limits our liability to refund the purchase price or replacement of this product, at our discretion, in the event the product fails to perform due to any manufacturing defect.
Accessory Products
Single Flow Meter
SFM-3001
Qty: 1
$230
Air Filters
HFS-2021
Qty: 6/pkg
$90
Tygon Tubing
TUB-516
Qty: 3 meters
$35
Tubing Clamps
MIC-107
Qty: 10 pack
$40
Bundles
Save on shipping with all bundle components shipped together!Starter Bundle
BUN-110
Starter + Clamps Bundle
BUN-112
$755
Save $45
Includes: Modular Incubator Chamber, a Single Flow Meter, and tubing clamps (10 pack)

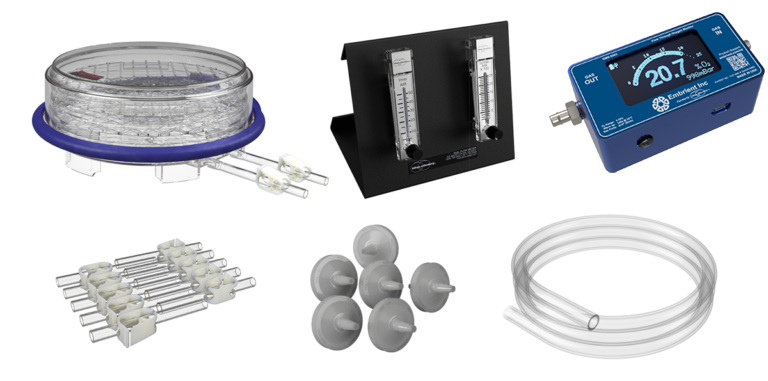

Inventor’s Bundle
BUN-113
$875
Save $50
Includes: Modular Incubator Chamber, Single Flow Meter (1), tubing clamps (10 pack), air filters (6 pack), and tygon tubing (3 meters)
